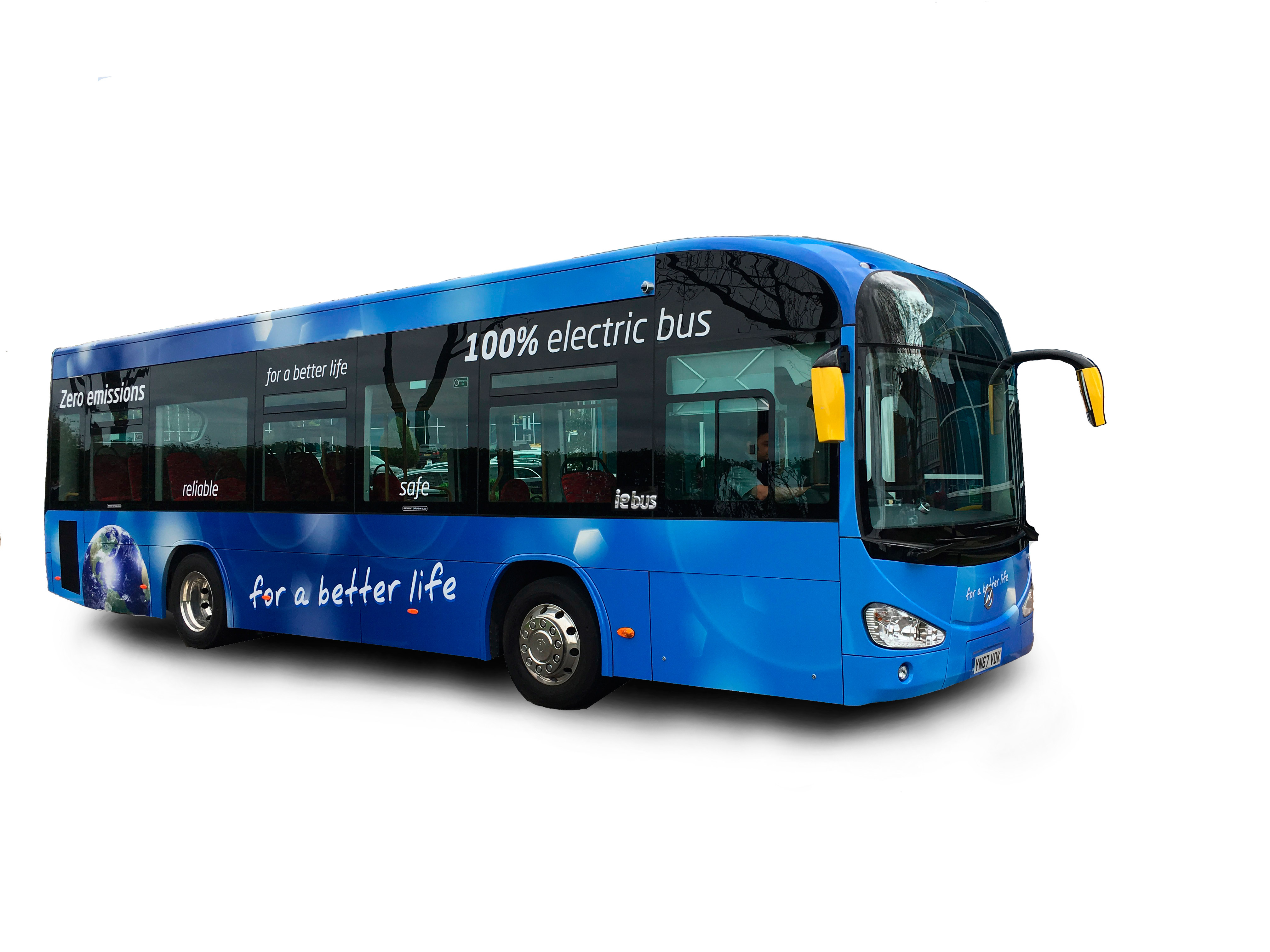

Irizar ie bus

Zero-emissions and silent

The Irizar ie bus incorporates 100% electric, zero-emission technology and offers a sustainable and eco-efficient urban mobility solution to respond to the current and future needs of city transport. It has been designed to achieve the best possible vehicle autonomy and energy efficiency (lowest consumption) as well as optimal end-of-life management.

The arguments in favour of this bus model are that is a totally safe, reliable, profitable product, with a tried and tested range, efficiency and reliability.

Today, this 12-metre bus model is used at full capacity in a range of European cities.

Irizar ie bus is a high-tech vehicle that integrates own-brand technology, developed by the Irizar Group, which enables it to offer operators a comprehensive maintenance service for the entire useful life of the vehicle.

The bus also has a storage system capable of identifying and efficiently managing energy flows and peaks.

The Irizar ie bus (10m and 12m) is the first electric city bus on the market that complies with the R.66.01 rollover safety regulations.

Length (axles) 10.850 mm (2 axles)
Height 3.209 mm
Width 2.550 mm
Wheelbase 4.645 mm
Front/rear overhang 2.805 mm / 3.405 mm
Standing height in aisle 2.400 mm
Floor height 340 mm
Approach angle 6,5º
Trailling angle
Step height Door 1: 250 mm (320 mm without kneeling)
Step height Door 2: 270 mm (340 mm without kneeling)
Door width Door 1: 1.100 mm
Door width Door 2: 1.200 mm

Powertrain
Manufacturer Irizar Group
Type Synchronous
Power nominal 180 kW
Rated torque nominal 1.500 Nm
Traction capacity Traction capacity even on 18% maximum slopes

Energy storage system
Batteries technology Lithium-ion
In-depot charging
- Energy installed 375 kWh (depending on customers needs)
- Power 100 kW
- Recharging time 3 - 4 h
Customized energy storage management ✔

Climate system
Driver Hispacold Zero Emissions (cooling: 3,5 kW, heating: 13 kW)


Passenger Hispacold Zero Emissions cooling: 28 kW, heating: 32 kW)



Passenger area and accessibility
Low floor ✔
No. of passengers 76
Wheelchair zone ✔
Seats for PRM 4
Electric ramp for the disabled ✔
Two doors dobles ✔
Cantilever armchairs can be installed in the front area ✔

Security and regulation
Driver´s seat according to VDV234 and EBSF ✔
Creepage function Start assist
Hillholder function Maintains the bus stopped on slopes before going backwards
Electromagnetic compatibility regulation R10 ✔
EcoAssist Efficiency mode indicator
Eco-mode Smart management for the climate once the bus is switched off
Compliance with fire-resistance regulation 118R ✔

Weights
Maximum weight front axle 7.500 Kg
Maximum weight rear axle 12.600 Kg

Others
Aluminium side frame and roof ✔
Grating / floor stainless steel ✔
Front divided into five parts for easy and economic interchange of external bodywork ✔
Acoustic isolation (roof and sides) ✔
Turning diameter 18.600 mm
LED internal and external illumination ✔
Double glazed windows ✔
Anti-graffiti materials ✔

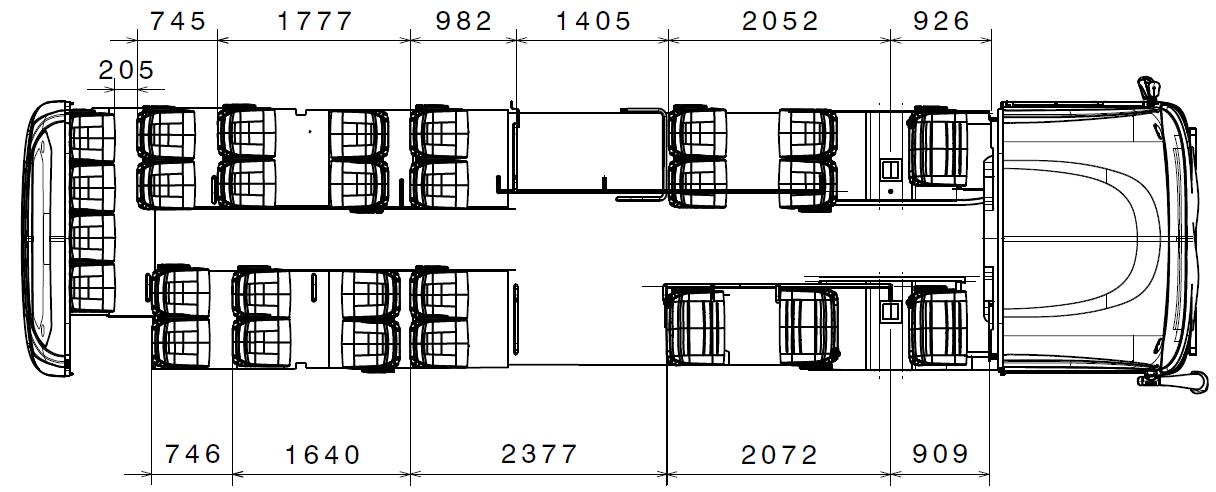

Seats distribution Irizar ie bus 10.8m

Two door access

No. of doors : 2
Wheelchair zone : 1
No. of seats : 28
No. of standees* : 35
Total no. of passengers : 76
RHD

No. of doors : 2
Wheelchair zone : 1
No. of seats : 27
No. of standees* :
Total no. of passengers : 61

*No. of standees - Data varies depending on the MAM of each country and the number of batteries installed on the bus.

Please enquire for other distribution possibilities.

Length (axles) 11.980 mm (2 axles)
Height 3.209 mm
Width 2.550 mm
Wheelbase 5,770 mm
Front/rear overhang 2.805 mm / 3.405 mm
Standing height in aisle 2.400 mm
Floor height 340 mm
Approach angle 6,5º
Trailing angle
Step height door 1: 250 mm (320 mm without kneeling)
Step height door 2 y 3: 270 mm (340 mm without kneeling)
Door width door 1: 1.100 mm
Door width door 2: 1.200 mm
Door width door 3: 1.050 mm


Powertrain
Manufacturer Irizar Group
Type Synchronous
Power nominal 180 kW
Rated torque nominal 1500 Nm
Traction capacity Traction capacity even on 18% maximum slopes

Energy storage system
Batteries technology Lithium-ion
In-depot charging
- Installed energy 375 kWh (depending on customers needs)
- Power 100 kW
- Recharging time 3 - 4 h
Opportunity charging
- Energy installed 90 kWh (depending on customers needs)
- Power 500 kW
- Recharging time 5 min.
Customized energy storage management ✔

Climate system
Driver Hispacold Zero Emissions (cooling: 3,5 kW, heating: 13 kW)


Passengers Hispacold Zero Emissions (cooling: 28 kW, heating: 32 kW)



Passengers area and accessibility
Low floor ✔
No. of passengers 76
One or two wheelchair zones ✔
Seats for PRM 4
Electric ramp for the disabled ✔
Two to three double doors ✔
Cantilever armchairs can be installed in the front area ✔

Security and regulation
Driver´s seat according to VDV234 and EBSF ✔
Creepage function Start assist
Hillholder function Maintains the bus stopped on slopes before going backwards
Electromagnetic compatibility regulation R10 ✔
EcoAssist Efficiency mode indicator
Eco-mode Smart management for the climate once the bus is switched off
Compliance with fire-resistance regulation 118R ✔

Weights
Maximum weight front axle 7.500 Kg
Maximum weight rear axle 12.600 Kg

Others
Aluminium side frame and roof ✔
Grating / floor stainless steel ✔
Front divided into five parts for easy and economic interchange of external bodywork ✔
Acoustic isolation (roof and sides) ✔
Turning diameter 20.870 mm
LED internal and external illumination ✔
Double glazed windows ✔
Anti-graffiti materials ✔

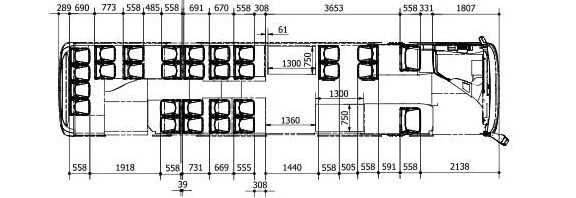

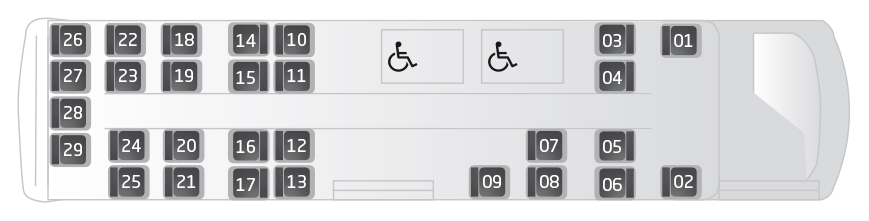

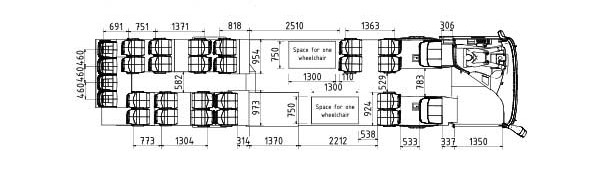

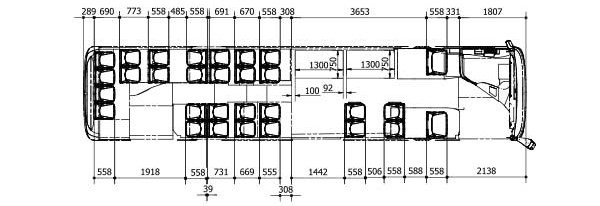

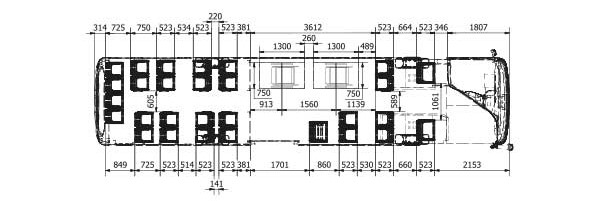

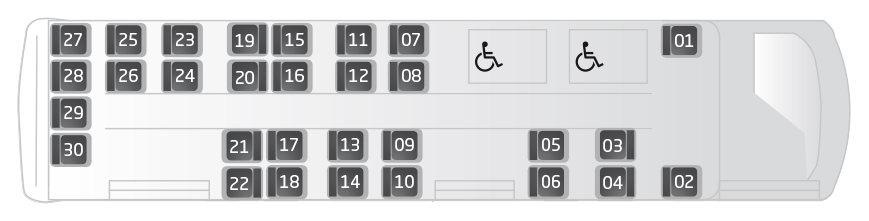

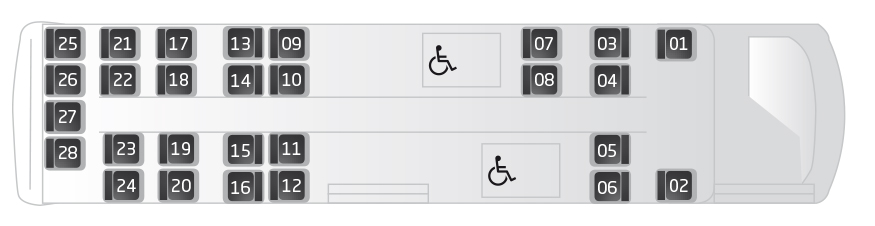

Seats distribution Irizar ie bus 12m

Distibución de butacas ie bus 12m


No. of doors : 3
Wheelchair zone : 2
No. of seats : 28
No. of standees* :
Total no. of passengers : Maximum: 76

Comfort : 56

No. of doors : 3
Wheelchair zone: 2
No. of seats : 30
No. of standees* :
Total no. of passengers : Maximum: 76

Comfort : 57

No. of doors : 3
Wheelchair zone: 2
No. of seats : 30
No. of standees* :
Total no. of passengers : Maximum: 76

Comfort : 57

No. of doors : 2
Wheelchair zone: 2
No. of seats : 28
No. of standees* :
Total no. of passengers : Maximum: 76

Comfort : 63

No. of doors: 2
Wheelchair zone: 2
No. of seats : 29
No. of standees* :
Total no. of passengers : Maximum: 76

Comfort : 62
RHD

No. of doors : 2
Wheelchair zone: 1
No. of seats : 26
No. of standees* :
Total no. of passengers : 63

*No. of standees - Data varies depending on the MAM of eahc country and the number of batteries installed on the bus.

Please enquire for other distribution possibilities.

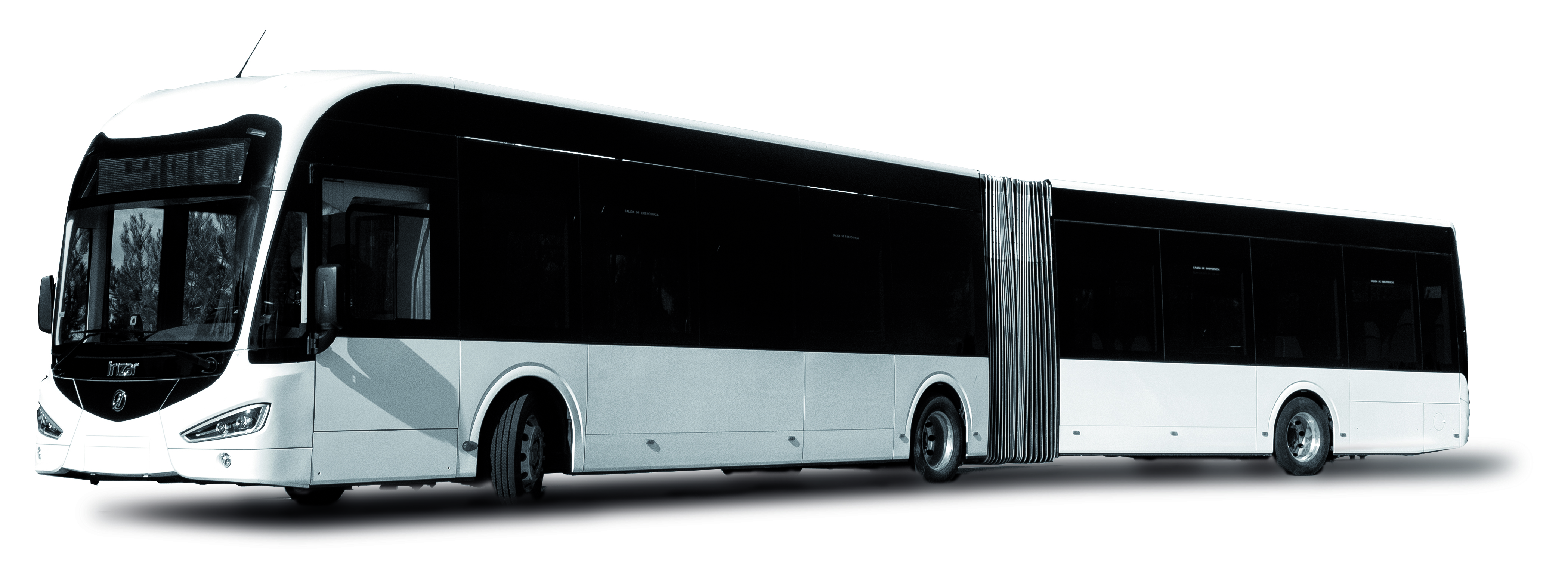

Length (axles) 18.730 mm (axles)
Height 3.300 mm
Width 2.550 mm
Wheelbase 1 5.980 mm
Wheelbase 2 6.540 mm
Front/rear overhang 2.805 mm / 3.405 mm
Standing height in aisle 2.400 mm
Floor height 350 mm
Approach angle 7,5º
Trailling angle 7,5º
Step height Door 1, 2, 3: 250 mm (320 mm without kneeling)
Step height Door 4, 5: 270 mm (340 mm without kneeling)
Door width Door 1, 5: 1.100 mm
Door width Door 2, 3, 4: 1.200 mm

Powertrain
Manufacturer Irizar Group
Type Synchronous
Power nominal 235 kW
Rated torque nominal 2300 Nm
Traction capacity Traction capacity even on 18% maximum slopes

Energy storage system
Batteries technology Lithium-ion
In-depot charging
- Installed energy 525 kWh (depending on customers needs)
- Power 150 kW
- Recharging time 3 - 4 h
Opportunity charging
- Energy installed 150 kWh (depending on customers needs)
- Power 500 kW
- Recharging time 5 min.
Customized energy storage management ✔

Climate system
Driver Hispacold Zero Emissions (cooling: 3,5 kW, heating: 13 kW)


Passenger Hispacold Zero Emissions (cooling: 49 kW, heating: 55 kW)



Passenger area and accessibility
Low floor ✔
No. of passengers 155
One or two wheelchair/pram areas ✔
Seats for PRM 4
Up to eight doors available (single or double) ✔
Electric ramp for the disabled ✔
Cantilever armchairs can be installed at the front and after the articulation ✔

Security and regulation
Driver´s seat according to VDV234 and EBSF ✔
Creepage function Start assist
Hillholder function Maintains the bus stopped on slopes before going backwards
Electromagnetic compatibility regulation R10 ✔
EcoAssist Efficiency mode indicator
Eco-mode Smart management for the climate once the bus is switched off
Compliance with fire-resistance regulation 118R ✔

Weights
Maximum weight front axle 7.500 Kg
Maximum axle weight 2 10.500 Kg
Maximum axle weight 3 13.000 Kg

Others
Aluminium side frame and roof ✔
Grating / floor stainless steel ✔
Front divided into five parts for easy and economic interchange of external bodywork ✔
Acoustic isolation (roof and sides) ✔
Turning diameter 23.700 mm
LED internal and external illumination ✔
Double glazed windows ✔
Anti-graffiti materials ✔

Seats distribution Irizar ie bus 18m
No. of doors : 5
Wheelchair/pram area : 2
No. of seats : 34
No. of standees*: 118
No. of doors : 4
Wheelchair/pram area : 3
No. of seats : 32
No. of standees* : 119
No. of doors : 4
Wheelchair/pram area : 2
No. of seats : 39
No. of standees* : 116

*No. of standees - Data varies depending on the MAM of each country and the number of batteries installed on the bus.

Please enquire for other distribution possibilities.
