Irizar ie tram

A tram on the tarmac

The Irizar ie tram is a 100% electric, zero-emission bus with the appearance of a tram that combines the large capacity, ease of access and internal configuration of a tram with the flexibility of a city bus.

This model is developed in versions from 12m up to the 18m articulated version and with a maximum capacity of 155 people.

The Irizar ie tram offers a clean, minimalist design and all its features correspond to specific functional aspects allowing it to create an identity and an image that are easily recognisable to its users. Accessibility, safety, passenger flow and passenger comfort are the inspiration behind the interior design architecture, resulting in a bright, comfortable, spacious, pleasant and safe interior.

Accessibility and passenger flow are further enhanced by up to 8 sliding doors, the integral low floor, the seating arrangement, the interior distribution with wide aisles, the signage on the seats reserved for wheelchairs and/or pushchairs, the audible stop request information, the installation of ticket validation devices, the design of the driving position and the comfortable and effortless access.

The interior design seeks to offer the user the sensation of openness and luminosity.

In the inter circulation area, a system with very low lateral inclinations has been designed to provide an open space towards the rear trailer. The system avoids the separation of the two passenger areas is translucent and is equipped with LED lighting. The integral low floor and arrangement of the seats inside the vehicle ensure that passengers can enter and exit smoothly at stations and move around freely inside the vehicle

For your entertainment, Irizar enables the installation of a wide range of solutions: USB chargers, WiFi, Braille buttons, luggage racks, passenger information, interior vinyls, etc.

Irizar has designed the batteries following analysis of the needs put forward by the operator with the sole purpose of guaranteeing the maximum possible battery range and offering the most suitable Irizar charging solutions, which include slow charging in depots, fast pantograph charging during travel, smart charging and/or pantograph charging in depots.


Ranges

Length (axles) 12.165 mm (axles)
Height 3.400 mm
Width 2.550 mm
Wheelbase 5.955 mm
Front/rear overhang 2.805 mm / 3.405 mm
Standing height in aisle 2.400 mm
Floor height 320 mm
Approach angle 7,5º
Trailing angle 7,5º
Step height door 1: 250 mm (320 mm without kneeling)
Step height door 2 y 3: 270 mm (340 mm without kneeling)
Door width door 1: 850 mm
Door width door 2,3,5: 1.200 mm
Door width door 4: 1.000 mm


Powertrain
Manufacturer Irizar Group
Type Synchronous
Power nominal 180 kW
Rated torque nominal 1.500 Nm
Traction capacity Traction capacity even on 18% maximum slopes

Energy storage system
Batteries technology Lithium-ion
In-depot charging
- Installed energy 375 kWh (depending on customers needs)
- Power 100 kW
- Recharging time 3 - 4 h
Opportunity charging
- Energy installed 90 kWh (depending on customers needs)
- Power 500 kW
- Recharging time 5 min.
Customized energy storage management ✔

Climate system
Driver Hispacold Zero Emissions (cooling: 3,5 kW, heating: 13 kW)
Passengers Hispacold Zero Emissions (cooling: 28 kW, heating: 32 kW)

Passengers area and accessibility
Low floor ✔
No. of passengers 86
One or two wheelchair/pram zones ✔
Seats for PRM 4
Electric ramp for the disabled ✔
Two to three double doors ✔
Cantilever armchairs can be installed at the front and after the articulation ✔

Security and regulation
Driver´s seat according to VDV234 and EBSF ✔
Creepage function Start assist
Hillholder function Maintains the bus stopped on slopes before going backwards
Electromagnetic compatibility regulation R10 ✔
EcoAssist Efficiency mode indicator
Eco-mode Smart management for the climate once the bus is switched off
Compliance with fire-resistance regulation 118R ✔

Weights
Maximum weight front axle 7.500 Kg
Maximum weight rear axle 12.600 Kg

Others
Aluminium side frame and roof ✔
Grating / floor stainless steel ✔
Front divided into five parts for easy and economic interchange of external bodywork ✔
Acoustic isolation (roof and sides) ✔
Turning diameter 20.870 mm
LED internal and external illumination ✔
Double glazed windows ✔
Anti-graffiti materials ✔

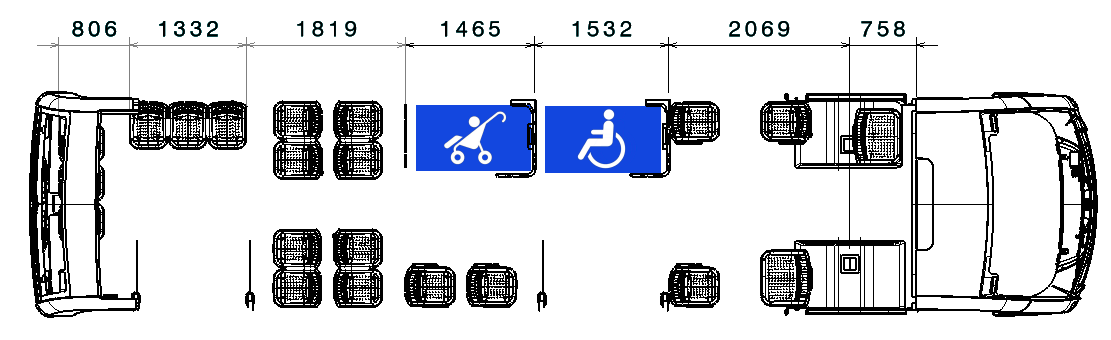

Seats distribution Irizar ie tram 12m
N. of doors : 3
Wheelchair /Pram zone : 3
No. of seats : 21
No.of standees* : 75

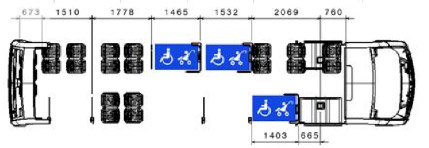

N. of doors : 3
Wheelchair /Pram zone : 2
No. of seats : 21
No.of standees* : 64

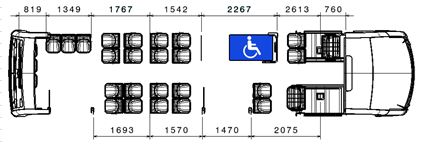

N. of doors : 3
Wheelchair /Pram zone : 1
No. of seats : 28
No.of standees* : 35

*No. of standees - Data varies depending on the MAM of eahc country and the number of batteries installed on the bus.

Please enquire for other distribution possibilities.

Length (axles) 18.730 mm (3 axles)
Height 3.400 mm
Width 2.550 mm
Wheelbase 1 5.980 mm
Wheelbase 2 6.540 mm
Front/rear overhang 2.805 mm / 3.405 mm
Standing height in aisle 2.400 mm
Floor height 350 mm
Approach angle 7,5º
Trailling angle 7,5º
Step height Door 1, 2, 3: 250 mm (320 mm without kneeling)
Step height Door 4, 5: 270 mm (340 mm without kneeling)
Door width Door 1, 5: 1.100 mm
Door width Door 2, 3, 4: 1.200 mm


Powertrain
Manufacturer Irizar Group
Type Synchronous
Power nominal 235 kW
Rated torque nominal 2.300 Nm
Traction capacity Traction capacity even on 18% maximum slopes

Energy storage system
Batteries technology Lithium-ion
In-depot charging
- Installed energy 525 kWh (depending on customers needs)
- Power 150 kW
- Recharging time 3 - 4 h
Opportunity charging
- Energy installed 150 kWh (depending on customers needs)
- Power 500 kW
- Recharging time 5 min.
Customized energy storage management ✔

Climate system
Driver Hispacold Zero Emissions (cooling: 3,5 kW, heating: 13 kW)
Passenger Hispacold Zero Emissions (cooling: 49 kW, heating: 55 kW)

Passenger area and accessibility
Low floor ✔
No. of passengers 155
One or two wheelchair/pram areas ✔
Seats for PRM 4
Up to eight doors available (single or double) ✔
Electric ramp for the disabled ✔
Cantilever armchairs can be installed at the front and after the articulation ✔

Security and regulation
Driver´s seat according to VDV234 and EBSF ✔
Creepage function Start assist
Hillholder function Maintains the bus stopped on slopes before going backwards
Electromagnetic compatibility regulation R10 ✔
EcoAssist Efficiency mode indicator
Eco-mode Smart management for the climate once the bus is switched off
Compliance with fire-resistance regulation 118R ✔

Weights
Maximum weight front axle 7.500 Kg
Maximum axle weight 2 10.500 Kg
Maximum axle weight 3 13.000 Kg

Others
Aluminium side frame and roof ✔
Grating / floor stainless steel ✔
Front divided into five parts for easy and economic interchange of external bodywork ✔
Acoustic isolation (roof and sides) ✔
Turning diameter 23.700 mm
LED internal and external illumination ✔
Double glazed windows ✔
Anti-graffiti materials ✔

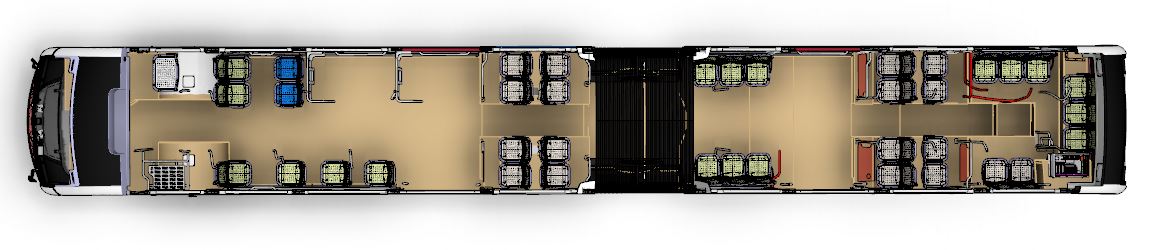

Seats distribution Irizar ie tram 18m
No. of doors : 5
Wheelchair/pram area : 2
No. of seats : 34
No. of standees* : 118
No. of doors : 4
Wheelchair/pram area : 3
No. of seats : 32
No. of standees* : 119
No. of doors : 4
Wheelchair/pram area : 2
No. of seats : 39
No. of standees* : 116
RHD

No. of doors : 3
Wheelchair/pram area : 2
No. of seats : 40
No. of standees*: 110

*No. of standees - Data varies depending on the MAM of each country and the number of batteries installed on the bus.

Please enquire for other distribution possibilities.
